Outside Diameter OD 219mm-3600mm SSAW spiral welded steel pipe manufacturers

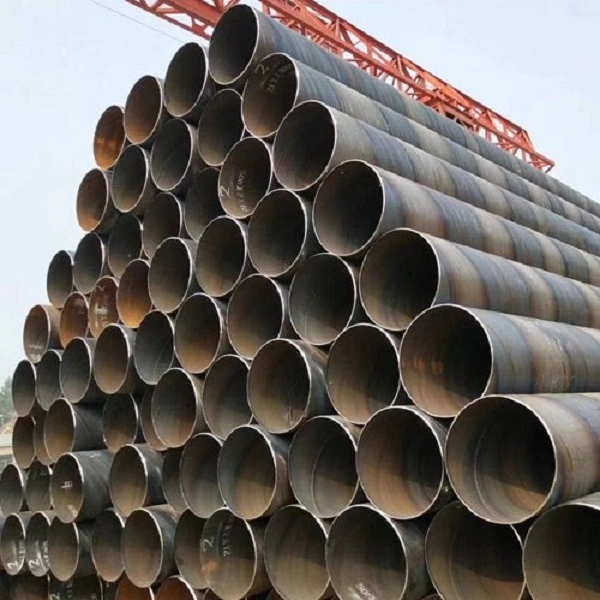

A spiral-welded pipe is formed by twisting strips of metal into a spiral shape, similar to a barber's pole, and then welding where the edges join one another to form a seam.
OD: 219-3600mm
Thickness: 4-18mm
Length: 6m/ 9m/ 12m or other size according to the contract
Product Details
A spiral-welded pipe is formed by twisting strips of metal into a spiral shape, similar to a barber's pole, and then welding where the edges join one another to form a seam.
OD: 219-3600mm
Thickness: 4-18mm
Length: 6m/9m/12m or other size according to the contract
Steel Material: Q195, Q215, Q235, Q345 (Chinese Standard. Other Material Can Be Ordered)
Standard: GB/ SY/ DIN/ ASTM/ ASME/ ASNI/ API
Related Parameters
| OD | 219-3600mm |
| Thickness | 4-18mm |
| Length | 6m/9m/12m or other size according to the contract |
| Steel Material | Q195, Q215, Q235, Q345 (Chinese Standard. Other Material Can Be Ordered) |
| Standard | GB/ SY/ DIN/ ASTM/ ASME/ ASNI/ API/ |
| Usage | Used For Gas, Petroleum, Water, Oil, Structure And Sewage |
| Ends | Plain or Beveled (Can be Protected By Plastic Pipe Cap) |
| Surface |
Bared Or Paint With Oil, Bitumen,1-3 layer PE (Outside Or Inside Anti-Corrosion Treatment Can Supply) |
| Technique | Hot Rolled and SSAW |
| Type | Welded |
| Welded Line Type | Spiral |
| Section Shape | Round |
| Package | In Bulk, Or Other Method According To The Contract |
Product Details
Advantages of spiral welded pipe
● Steel pipes of the same width can be used to produce steel pipes of different diameters, especially for producing large diameter steel pipes with narrow strip steel.
● Under the same pressure conditions, the spiral weld is subjected to less stress than the straight seam, which is 75% to 90% of the straight seam welded pipe, and thus can withstand a large pressure. Compared with the straight seam welded pipe of the same outer diameter, the wall thickness can be reduced by 10% to 25% under the same pressure.
● The size is accurate, the general diameter tolerance is not more than 0.12%, the deflection is less than 1/2000, and the ellipticity is less than 1%. Generally, the sizing and straightening process can be omitted.
● It can be continuously produced. In theory, it can produce infinitely long steel pipes, with small loss of cutting head and tail cutting, which can improve the utilization rate of metal by 6% to 8%.
● Compared with the straight seam welded pipe, it is flexible in operation and easy to change the variety.
● The equipment is light in weight and has low initial investment. It can be made into a trailer-type mobile unit, and the welded pipe can be directly produced at the construction site where the pipeline is laid.
● It is easy to realize mechanization and automation.
