Reducing tube reducer is also called large and small head, reducing tube, and abnormal direct flow. A chemical pipe fitting used to connect two pipes of different diameters. According to the different shapes, it is divided into concentric large and small head and eccentric large and small head two kinds. The size of the head material includes stainless steel size head (304304l316316l), alloy steel, carbon steel size head, the size of the head material is 20 steel, Q235, Q345, 16Mn and so on
Before the size of the head bonding, use a dry cloth to wipe the side of the socket and the outside of the socket. When there is oil on the surface, wipe it with acetone. There are the following points to note:
1, control diameter: DIN standard (DN10-6), 3 a/IDF criteria (1/2 "to 6"), ISO standard (12.7-152.4 Ф Ф);
2, international industry standards :DIN, ISO, SMS, 3A, IDF, etc.;
3, product material: stainless steel 304, 316, 316L;
4, quality and use: the size of the head inside and outside with high-grade polishing equipment to meet the surface precision requirements; This product is suitable for dairy, food, beer, beverage, pharmaceutical, cosmetics and other industrial fields;
5, external processing: according to user requirements to draw, sample processing non-standard products;
6, connection mode: clamp (quick assembly) type, welded type, thread (loose) type.
Size : 1/2 to 72"
Wall tickness: SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140, SCH160,XXS, DIN, JIS standard thickness
Material: Q235, 20#, 10#, Q345, A234 WPB, WP5, WP9,WP11, ST37.0,ST35.8,ST37.2,ST35.4/8,ST42,ST45,ST52,ST52.4, STP G38,STP G42,STPT42,STB42,STS42,STPT49,STS49
Product Details

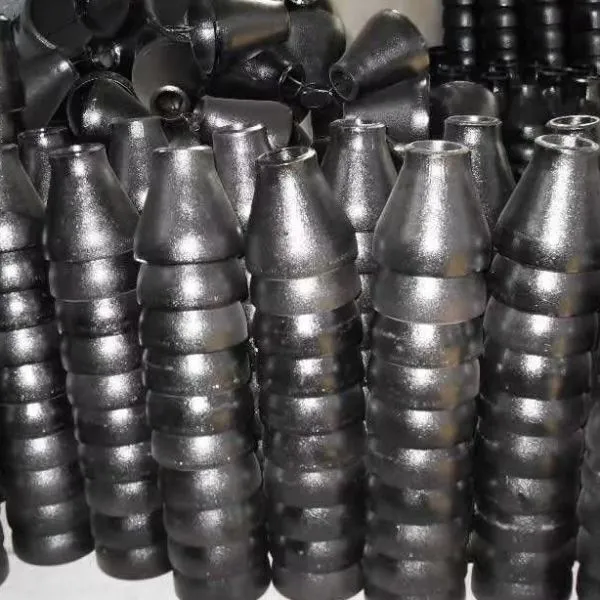

ASME B16.9 Carbon Steel Eccentric Pipe Fitting Reducer
Reducing tube reducer is also called large and small head, reducing tube, and abnormal direct flow. A chemical pipe fitting used to connect two pipes of different diameters. According to the different shapes, it is divided into concentric large and small head and eccentric large and small head two kinds. The size of the head material includes stainless steel size head (304304l316316l), alloy steel, carbon steel size head, the size of the head material is 20 steel, Q235, Q345, 16Mn and so on
Before the size of the head bonding, use a dry cloth to wipe the side of the socket and the outside of the socket. When there is oil on the surface, wipe it with acetone. There are the following points to note:
1, control diameter: DIN standard (DN10-6), 3 a/IDF criteria (1/2 "to 6"), ISO standard (12.7-152.4 Ф Ф);
2, international industry standards :DIN, ISO, SMS, 3A, IDF, etc.;
3, product material: stainless steel 304, 316, 316L;
4, quality and use: the size of the head inside and outside with high-grade polishing equipment to meet the surface precision requirements; This product is suitable for dairy, food, beer, beverage, pharmaceutical, cosmetics and other industrial fields;
5, external processing: according to user requirements to draw, sample processing non-standard products;
6, connection mode: clamp (quick assembly) type, welded type, thread (loose) type.
Related Parameters
Technical specifications |
|
Type |
Pipe Reducer |
Standard |
ASTMA234,ASTM A420,ANSI B16.9/B16.28/B16.25,ASME B16.9, |
Size |
1/2 to 72" |
Wall Tickness |
SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140, |
Material |
Q235, 20#, 10#, Q345 |
Surface |
Black painting,varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE,etc. |
Packing |
Plastic film,wooden cases ,wooden pallet,or on customers' request |
Application | Low and middle pressure fluid pipeline,boiler, petroleum and natural gas industry,drilling,chemical industry, electric industry,shipbuilding,fertilizer equipment and pipeline, structure,petrochemical,pharmaceutical industry |
