PN6 PN10 PN16 PN25 PN40 DN200 DN300 DN400 DN500 DN600 DN700 DN800 DN1000 Stainless steel forged flange
Flanges are used to connect pipes, valves, fittings and special items such as filters and pressure vessels.
The cover plate can be connected to form a "blind flange".
The flanges are bolted, and the sealing is usually done using spacers or other methods.
The main use of flanges is to connect pumps, pipes, valves and other equipment to form the piping system.
Usually, the flanges are threaded or welded and you can connect the two flanges with washer bolts and provide a seal to make the plumbing system easily accessible.
ASME B16 Sswivel chair. Pipe flange and flange connections: NPS 1 / 2 to NPS 24 metric / inch standard covers pressure-temperature rating, materials, dimensions, tolerances, marking, testing and pipe flange and flange connection openings.
Size : DN10-DN2000
Type: Welding Neck Flange, WN Flange (Raised Face)
Process: Forged and Stamped
Product Details
PN6 PN10 PN16 PN25 PN40 DN200 DN300 DN400 DN500 DN600 DN700 DN800 DN1000 Stainless steel forged flange
Flanges are used to connect pipes, valves, fittings and special items such as filters and pressure vessels.
The cover plate can be connected to form a "blind flange".
The flanges are bolted, and the sealing is usually done using spacers or other methods.
The main use of flanges is to connect pumps, pipes, valves and other equipment to form the piping system.
Usually, the flanges are threaded or welded and you can connect the two flanges with washer bolts and provide a seal to make the plumbing system easily accessible.
ASME B16 Sswivel chair. Pipe flange and flange connections: NPS 1 / 2 to NPS 24 metric / inch standard covers pressure-temperature rating, materials, dimensions, tolerances, marking, testing and pipe flange and flange connection openings.
Related Parameters
|
Technical specifications |
|
|
Type |
Pipe Flange |
|
Standard |
AISI, ASTM DIN, JIS, GB, SUS, EN, etc |
|
Size |
DN10-DN2000 |
|
Usage |
Fluid pipe, oil pipe, gas pipe, structure pipe, boiler tubes |
|
Pressure |
class 150; class 300; class 600; class 900, PN |
|
Packing |
seaworthy plywooden case, wooden pallet |

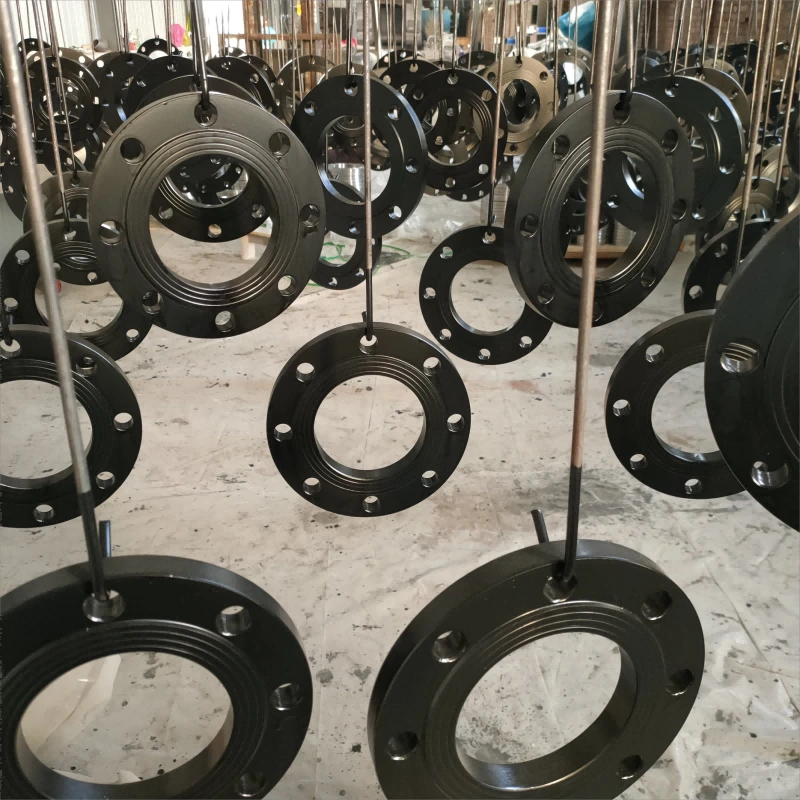

| Coating | black paint, yellow transparent paint, cold and hot dip galvanize |
