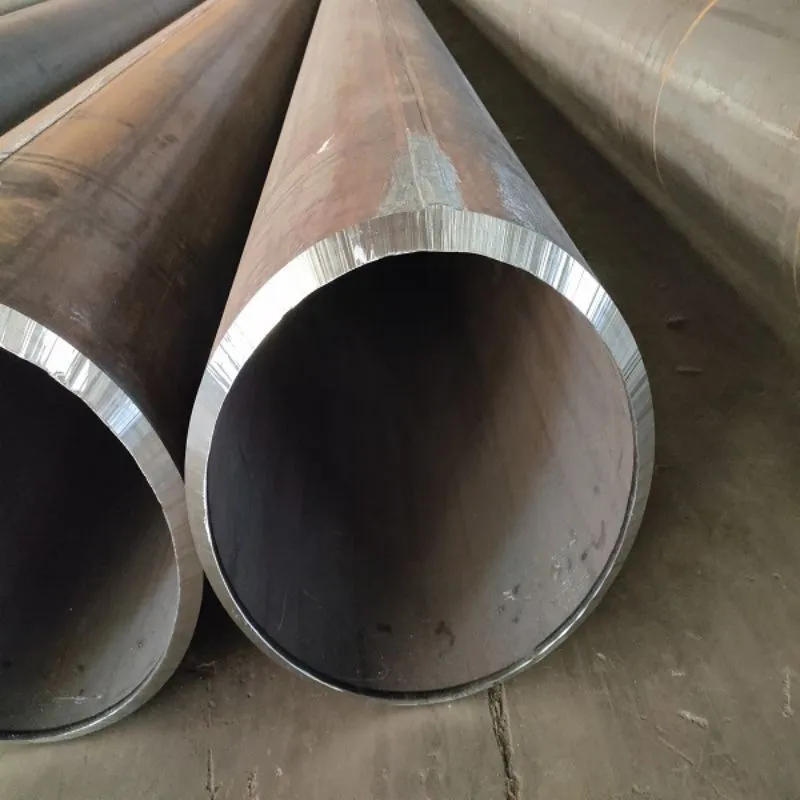

LSAW Steel Pipe Water Transfer/Oil and Gas Delivery Metal API 5L Welded Oil Pipe
The process of making LSAW pipes involves molding steel sheets around a cylinder and welding the ends together in a straight line. Typically, the diameter range of LSAW pipes is 16 inches to 60 inches (406 mm to 1500 mm). They perform well in terms of corrosion resistance at low temperatures and high pressure.
Their exceptional strength and longevity, which are a result of the longitudinal welding method that creates a strong seam down the length of the pipe, are one of their main advantages. Because of this feature, LSAW pipes are ideal for applications that need to withstand environmental loads and external pressures.
Outside diameter : 16mm-2000mm (0.62''-78.7'')
Wall tickness: 0.7mm-26mm (0.02''-1.02'')
Length: 5.8-12.2m
Material:
|
Q195 = S195 / A53 Grade A |
Standard:EN39, BS1139, BS1387, EN10255; ASTM A53, A500, A36, A795; ISO65, ANSI C80, DIN2440, JIS G3444; GB/T3091, GB/T13793
Product Details
LSAW Steel Pipe Water Transfer/Oil and Gas Delivery Metal API 5L Welded Oil Pipe
The process of making LSAW pipes involves molding steel sheets around a cylinder and welding the ends together in a straight line. Typically, the diameter range of LSAW pipes is 16 inches to 60 inches (406 mm to 1500 mm). They perform well in terms of corrosion resistance at low temperatures and high pressure.
Their exceptional strength and longevity, which are a result of the longitudinal welding method that creates a strong seam down the length of the pipe, are one of their main advantages. Because of this feature, LSAW pipes are ideal for applications that need to withstand environmental loads and external pressures.
Related Parameters
|
Technical specifications |
|
|
Type |
LSAW Steel Pipe |
|
Standard |
EN39, BS1139, BS1387, EN10255; ASTM A53, A500, A36, A795; ISO65, ANSI C80, DIN2440, JIS G3444; GB/T3091, GB/T13793 |
|
Outside diameter |
16mm-2000mm (0.62''-78.7'') |
|
Wall Tickness |
0.7mm-26mm (0.02''-1.02'') |
|
Length |
according to customer's requirements |
|
Surface |
bare/shot blasting/galvanized/painted as customer needs |
|
Packing |
option one: plastic caps covered on both ends of pipes; |
|
Material |
Q195 = S195 / A53 Grade A |
| Usage | oil/gas/water fluid transportation or construction, hydraulic precision machinery parts/power/boiler/petrochemical/building industry etc |
| Certificate | CE,LEED,BV,PHD&EPD,BC1,EN10210,EN10219,ISO9000,ASTMA500,ASTM A501,AS1163,JIS G3466 |
